BLACK CLIP™ INSTALLATION GUIDE

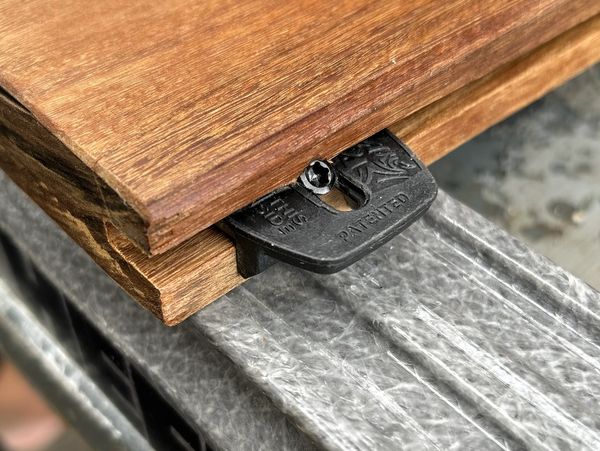

With the BLACK CLIP™ fastening system, no stress is applied to the wood fibers. The boards retain their full strength, while their natural movement is absorbed without causing damage.
The result: An invisible, durable, and elegant fastening solution.
STEP 1:
STEP 1:
STEP 1:

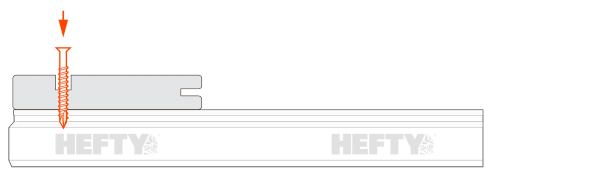

The first decking board must be traditionally screwed into place on our HEFTY BLACK BEARERS™.
STEP 2:
STEP 1:
STEP 1:

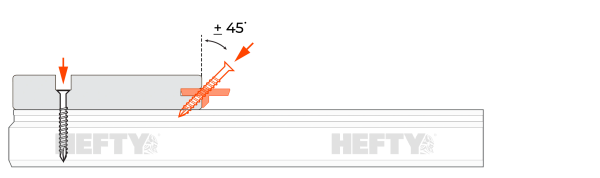

Insert the BLACK CLIP™ into the groove and drill at a 45° angle. Screw until it is firmly secured.
STEP 3:
STEP 3:
STEP 3:

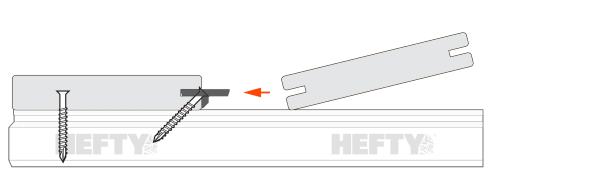

Mark the fixing points and create the required grooves using a biscuit joiner. Place the next decking board into position.
STEP 4:
STEP 3:
STEP 3:

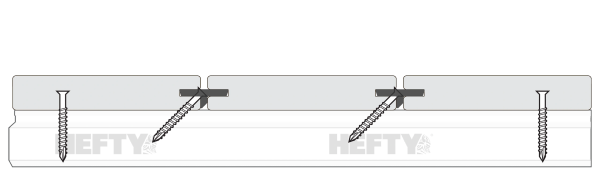

Repeat the process board by board until the entire decking surface is securely installed.
BLACK CLIP™ SCREW - TECHNICAL FEATURES
The BLACK CLIP™ SCREW is engineered for high-performance outdoor decking applications, featuring a 40 mm length and a 5 mm Torx drive for powerful, precise fastening. Its dimensions and tapered geometry are specifically designed to work seamlessly with the BLACK CLIP™ system, ensuring deep anchoring, reduced wood splitting, and a secure, long-lasting invisible installation.
TORX HEAD
Self-Drilling Screw – Type 17
Self-Drilling Screw – Type 17
Provides strong torque transfer with no cam-out or slipping. Improves tool lifespan and reduces damage to the screw head during installation.
Self-Drilling Screw – Type 17
Self-Drilling Screw – Type 17
Self-Drilling Screw – Type 17
Tapered design helps prevent wood splitting and ensures a smooth, controlled drive into the material.
Allows quick, efficient installation with minimal need for pre-drilling.
Deep Thread Profile
Self-Drilling Screw – Type 17
Deep Thread Profile
Engineered with a deep thread profile that penetrates and locks securely into timber, ensuring exceptional grip, reduced movement and lasting structural reliability.
EXTERIOR
Self-Drilling Screw – Type 17
Deep Thread Profile
Designed for outdoor applications, offering reliable performance in different weather conditions.
